PP/PE/HDPE Film Washing and Drying Line

It is widely used in recycling plastic films like agriculture film, bags, PP woven bags and so on. With complete crushing and wahing line, clients can make dry,clean film scraps from wasted material. The whole washing line could be "L" or "U" shape according clients' w

send inquiry now


  It is widely used in recycling plastic films like agriculture film, bags, PP woven bags and so on. With complete crushing and wahing line, clients can make dry,clean film scraps from wasted material. The whole washing line could be "L" or "U" shape according clients' workshop.

  The working flow of this film washin line is: belt conveyer → crusher → friction washer → float washer→dewaterer → dryer → silo. If the film is very dirty, some clients may add hot washer for thiswashing line.

PE PP Washing Plants are high throughput, high performance recycling systems designed especially for PE PP films from various sources, including materials with high contamination levels, HDPE bottles. The fianl purpose is to get the high purity ,low moThe whole system inclued the procedures: Shredding/ Crushing, Washing, Dehydrator, Drying, Collecting ect.

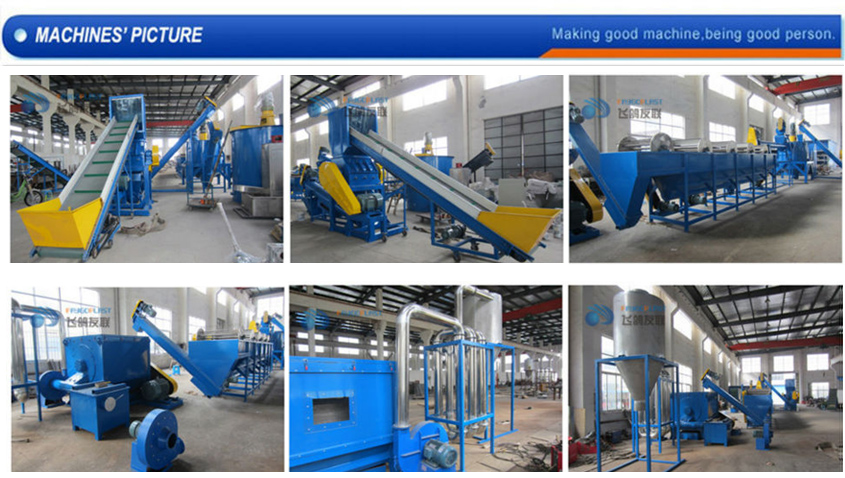

A typical PP PE washing plant is consisit of the following components:

1. Belt conveyor: For waste material infeeding.

2. Shredder: For material size reduction. Single shaft shredder & Double shaft shredder could be all choosed as per different plant's needs.

3. Crusher/Granulator: Wet crushing system.It used for material size reduction and pre-washing.

4.High speed Friction washer( Scrub washing machine): High speed friction washing could achieve a good cleaning effects through the blades on the beating and spray. This machine is suitable for broken film and Plastic flakes washing.

5. Deposit and float machine( sink-float washing tank ) : for impurities precipitating separation and wash the material more clean.

6.  Horizontal dewatering machine( Dehydrator):This machine is mainly used for the cleaning of waste plastic after mechanical dewatering and drying, the spindle through high speed rotating threw the plastic and water to the screen, water releases by screen, while the plastic is from the outlet to be out of the machine enters into the next procedure. The machine has a good drying effect and high energy efficiency. The blade is made of high wear-resistant materials, can be replaced more conveniently.

 7. drying pipes &  transition silo: Hot air drying and transportation to final storage silo.

The whole line is automatically controlled from feeding to drying.

PE, PP film, bottles, bags, woven bags, sacks, and such materials can be washed and recycled in this machine line.

output capacity : 200-300kg/h, 500-600kg/h, 600-800kg/h, 1500kg/h.

After discussing with our customers, We can provide effective, customized proposals and turn-key solutions by listening to and understanding our customers’ needs.

Customers are warmly welcomed and encouraged to visit our factory to check some machines in operation.

For more details you need, please feel free to contact with us.
