Injection Blow Molding Machine

It is widely used in the manufacture of medicine, health care products, food and beverage, cosmetics and other industries. It can be used to process PE, PP, PS, SAN, PMMA, PC, PETG, PEN and other thermoplastics. Of the packaging bottle. Equipped with a multi-cavity automatic continuous production technology, the machine adopts the three-position rotary device, the hot runner system and the multi-stage injection molding system.

send inquiry now



This machine has used the European standard injection blowing mode, which has absorbed the advantages of domestic injection.
1. It is one step injection blowing machine, the raw material is PP/PE/PS pellets, no need preforms.
2. One Mold with Multi-caivity based on your required bottle size, using three horizontal station rotary device, hot runner system and multi-stage injection molding system,injection molding, blow molding, demolding three position and action to ensure equipment of high efficiency and energy saving operation.
3. Compared with the blow molding machine, the quality of the bottle neck made by thus machine is better, and it no need waste raw material.
4. Close mould cylinder, ensure product cleaning. The clamping force of the clamping force on the internalbalance, uniform.
5. Decreased the Machine height for easy assemble the mold.
6. Unique hydraulic servo system, reasonable layout of the pipeline, so that the machine is running high efficiency and energy saving.
7. The unique structure of the boost lock structure increases the clamping force and reduces the energy consumption of the system.
8. With servo system to control the mold rotary & increase rotary accurancy and reduce the dry cycle time.
Special double cylinder horizontal valve plate superimposed injection system, so that the injection, storage more smooth and fast, beautiful appearance, Special plastic components, to meet the requirements of different products, multi-level injection, pressure projection.
9. Internal layout optimization, equipment maintenance,maintenance more convenient.
10. Release the digital sensor detection, and increase the mandrel rotary detection function, realize the unattended, automatic operation.
11. Optional air conditioning mandrel function, shorten the product cooling cycle,solve the problem of sticking mandrel.
12. The conveyor belt can be connected with the visual inspection, Leakage Thester labeling and other equipment.

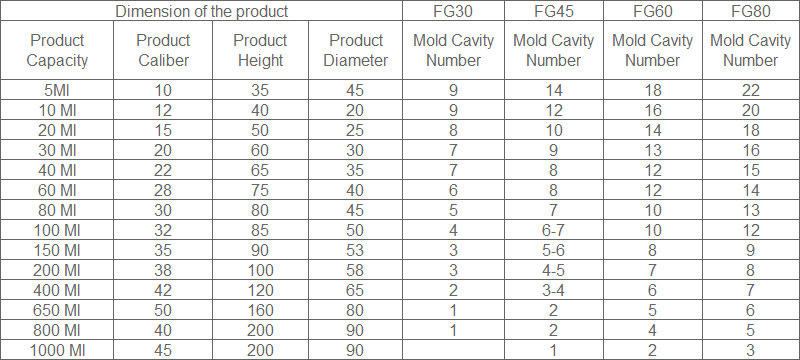

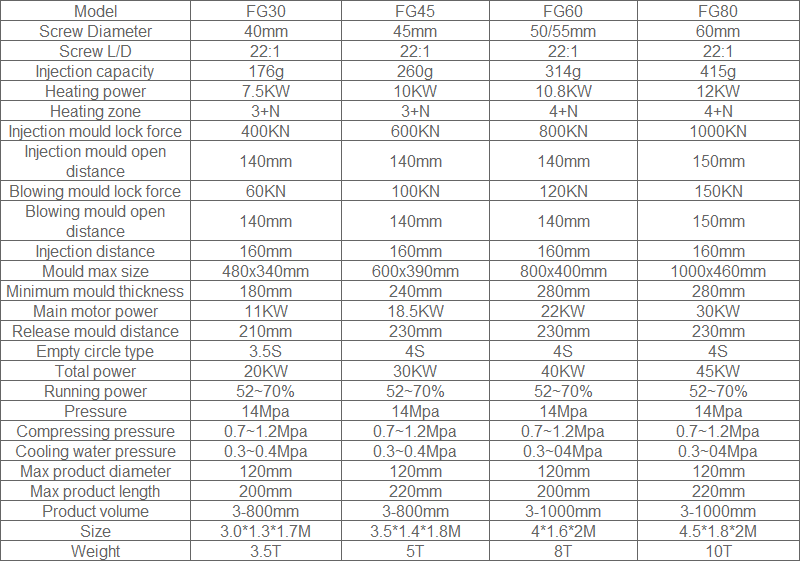

specification26.png  specification26.png
